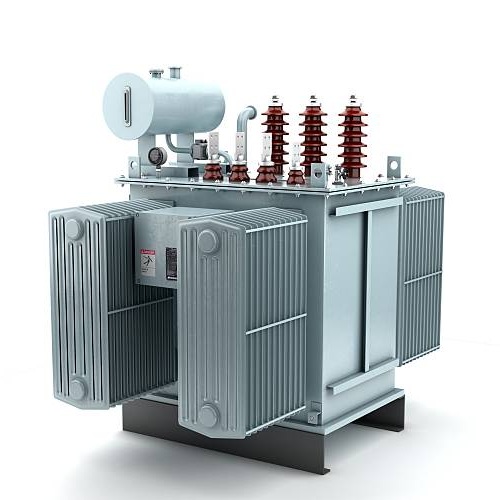

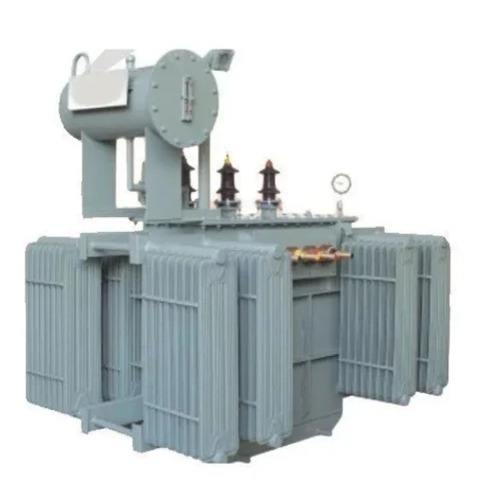

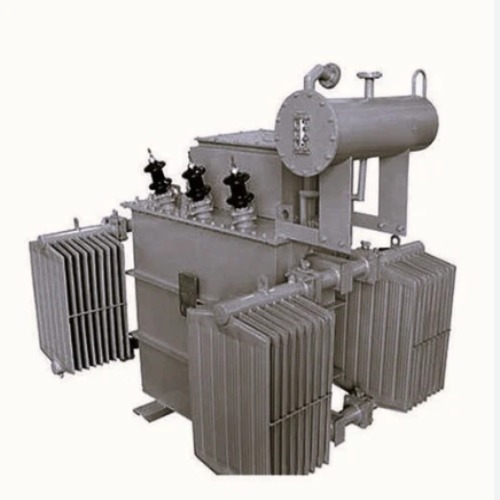

Schneider Distribution Transformer

Name: Schneider Distribution Transformer
Brand: ESS BEE ELECTRICALS
Price: 150000.0 INR
Availability: InStock

Price 150000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Schneider Distribution Transformer Specification

Voltage Booster Type
On-load / Off-load tap changer

High Voltage
11 kV

Cooling Type
ONAN (Oil Natural Air Natural)

Load Loss
As per IS standards, typically < 3.5 kW at 11 kV, 630 kVA

Capacity
100 kVA - 2500 kVA

Coil Material
Copper or Aluminum

Standard
IS 1180, IEC 60076

Rated Voltage
11 kV

Low Voltage
0.433 kV

Dimension (L*W*H)
2200 x 1500 x 1800 mm (varies by model)

Operating Temperature
-20C to +50C

Product Type
Distribution Transformer

Material
Copper/Aluminum windings with high-quality laminated core

Output
11 kV / 0.433 kV (customizable)

Frequency (MHz)
50 Hz

Efficiency
Up to 98%

Phase
Three Phase

Usage
Electrical distribution in industrial and commercial applications

Coil Structure
Layered/Laminated

Coil Number
Two (Primary and Secondary)

Power Scope
Up to 2500 kVA

Weight
Approx. 2000 - 3500 kg (depending on capacity)

Secondary Connection Type
Star with Neutral

Primary Connection Type
Delta or Star available as required

Enclosure Type
Outdoor/Indoor with IP23/ IP45 options

No Load Loss
As per IS:1180 standards

Winding Technique
Double wound, concentric winding

Insulation Class
Class A / F as per requirement

Protection
Buchholz Relay, Oil Level Gauge, Temperature Indicator

Impedance Voltage
4% to 6% depending on rating

Oil Type
Mineral Oil (as per IS 335)

Painting
Epoxy powder coated, rust resistant finish

Schneider Distribution Transformer Trade Information

Minimum Order Quantity
1 Number

Delivery Time
2

About Schneider Distribution Transformer

Schneider Electric India have devised highly reliable Oil Type Distribution Transformers that offer a cost-efficient solution for your network. From managing a rural network to enhancing your energy efficiency, at Schneider Electric, they carry adequate knowledge and expertise to configure effective solutions for all applications associated with distribution transformers. Pole mounted, ground-mounted, or high-performance oil-type transformers all are a part of our comprehensive range.

Flexible Connections and High Efficiency

Supporting both Delta and Star primary connections, the transformer adapts to varied installation environments. The secondary star connection provides a neutral for safe and reliable power distribution. Efficiency reaches up to 98%, meeting the demands of intensive industrial and commercial applications. All units comply with stringent IS 1180 and IEC 60076 standards, ensuring optimal energy transfer and low energy loss.

Advanced Protection and Durability

This Schneider transformer features a comprehensive protection suite, including Buchholz Relay, oil level gauge, and temperature indicators. The enclosure is available for both indoor and outdoor use, offering IP23 or IP45 protection. Its layered, concentric winding technique and epoxy powder coating deliver superior resistance to rust, moisture, and mechanical wear.

Customizable Voltage and Power Scope

Voltage output, tap-changer type, and winding materials are customizable to meet specific operational requirements. With a power range from 100 kVA up to 2500 kVA and standard voltage ratings of 11 kV/0.433 kV, these transformers suit a wide spectrum of electrical distribution networks in India.

FAQ's of Schneider Distribution Transformer:

Q: How is the primary connection type (Delta or Star) selected for Schneider Distribution Transformers?

A: The primary connection type, either Delta or Star, is chosen based on your application's load characteristics and system requirements. Schneider offers both options to ensure optimal compatibility with existing electrical infrastructure.

Q: What makes the insulation class (Class A/F) important in transformer operation?

A: The insulation class (A or F) defines the thermal endurance of the transformer's insulation materials. Choosing the appropriate class ensures reliable performance and longer operational life under different temperature conditions.

Q: When should an ONAN (Oil Natural Air Natural) cooling transformer be used?

A: ONAN cooling is ideal for transformers used in locations where natural cooling is adequate. This system promotes low maintenance, operational simplicity, and is suitable for most industrial and commercial installations within the specified capacity range.

Q: Where can Schneider Distribution Transformers be installed-indoors or outdoors?

A: These transformers can be installed both indoors and outdoors, thanks to the robust enclosure options (IP23/IP45) that protect against dust, moisture, and accidental contact in various site environments.

Q: What process is followed to ensure transformer efficiency and quality?

A: Each transformer is manufactured using premium-grade copper or aluminum windings, high-quality laminated cores, and undergoes rigorous quality checks. Compliance with IS 1180 and IEC 60076 standards ensures consistent no-load and load loss performance.

Q: How does the Buchholz relay enhance transformer protection?

A: The Buchholz relay provides early fault detection by sensing gas accumulation or oil movement inside the transformer. This feature helps prevent major failures by triggering protective actions before severe damage occurs.

Q: What are the key benefits of choosing a Schneider Distribution Transformer for industrial or commercial use?

A: Key benefits include high energy efficiency (up to 98%), customizable configurations, superior protection, durable construction, and wide capacity range. These transformers are engineered for reliability and cost-effectiveness in demanding distribution environments.
